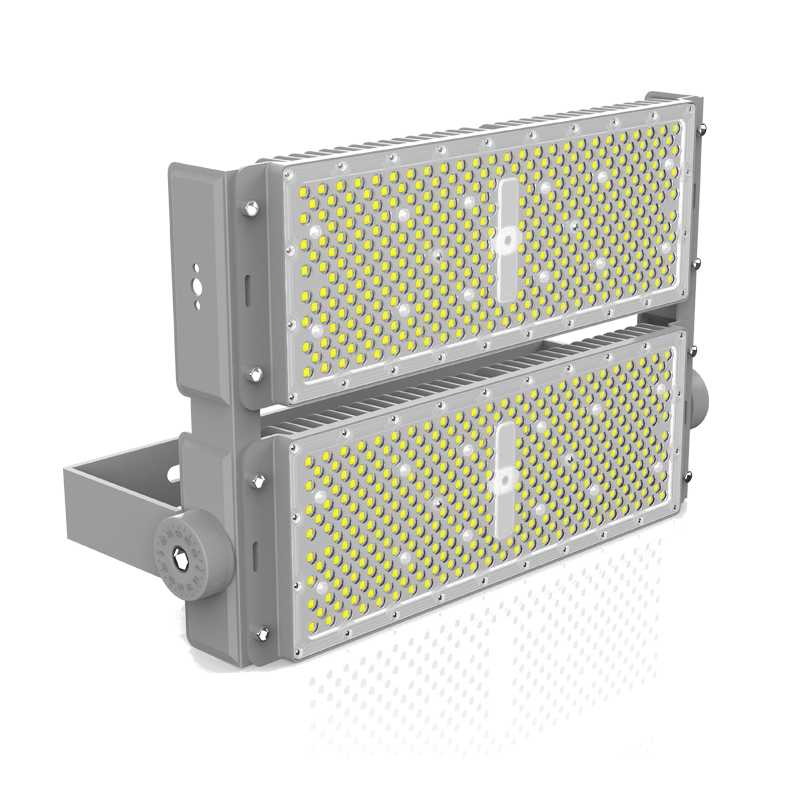

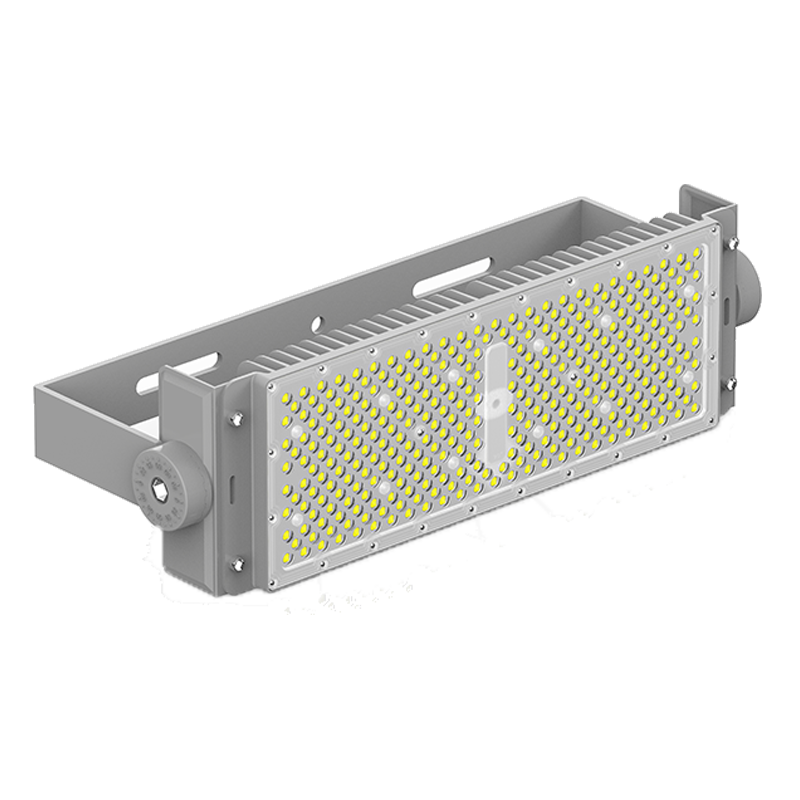

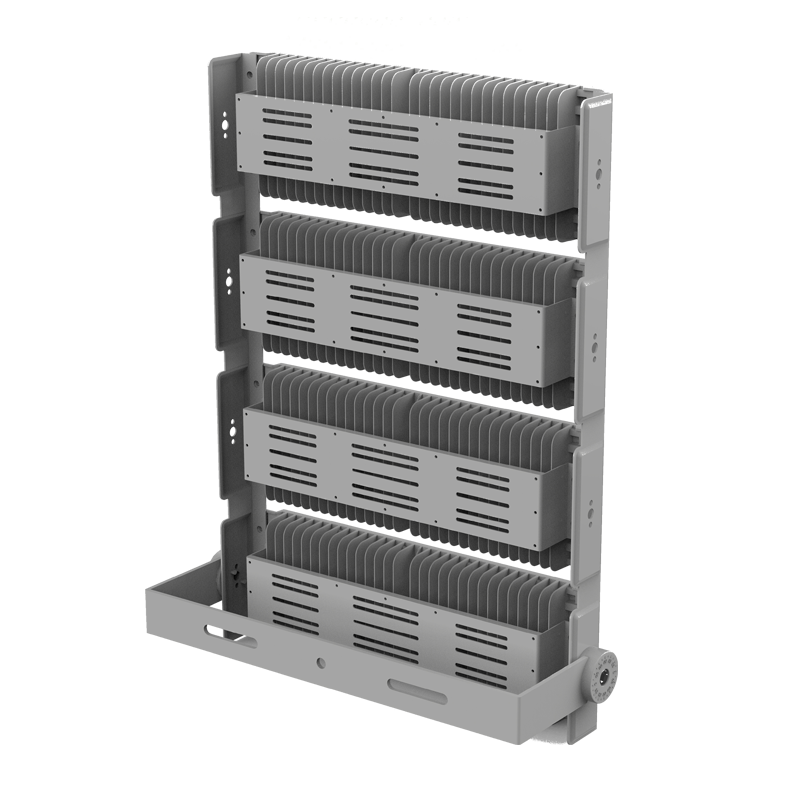

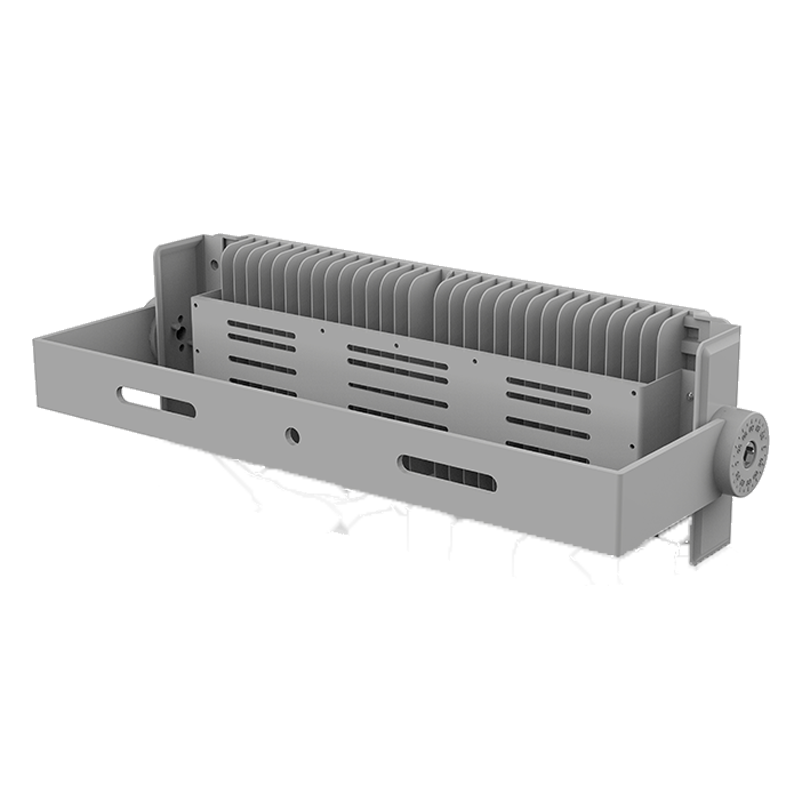

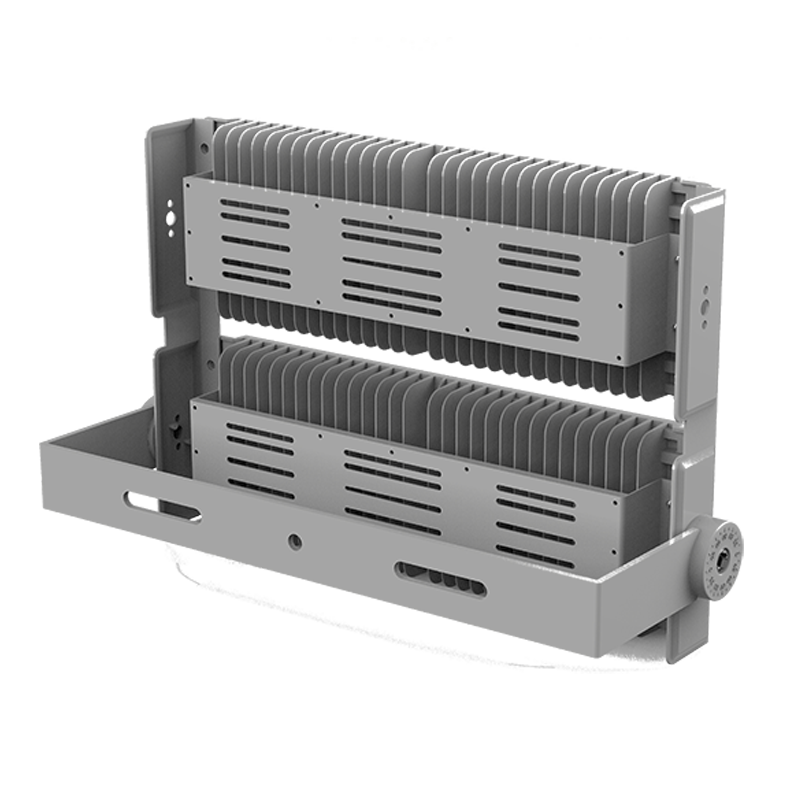

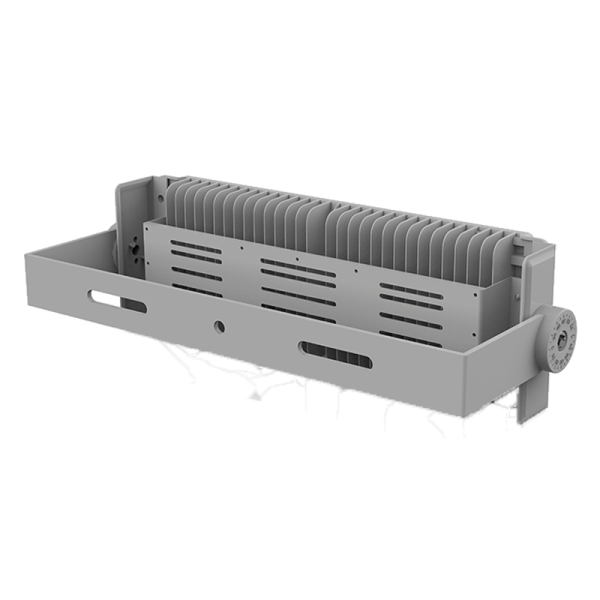

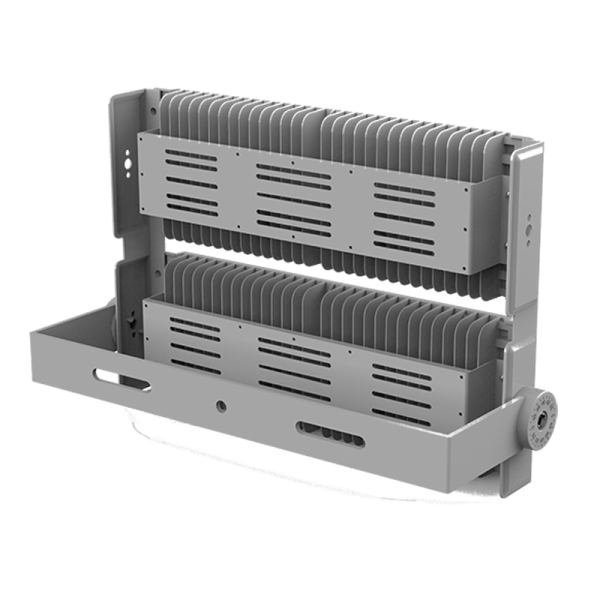

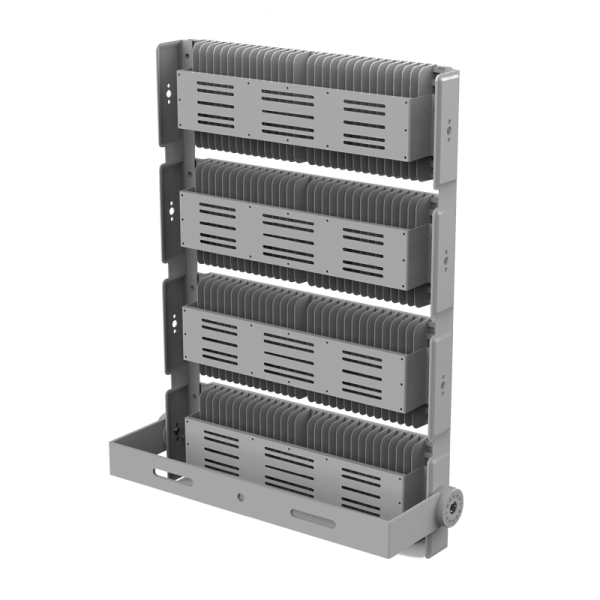

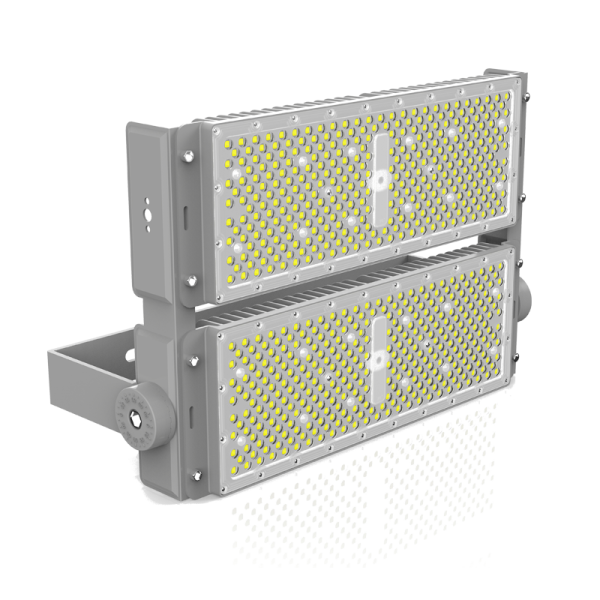

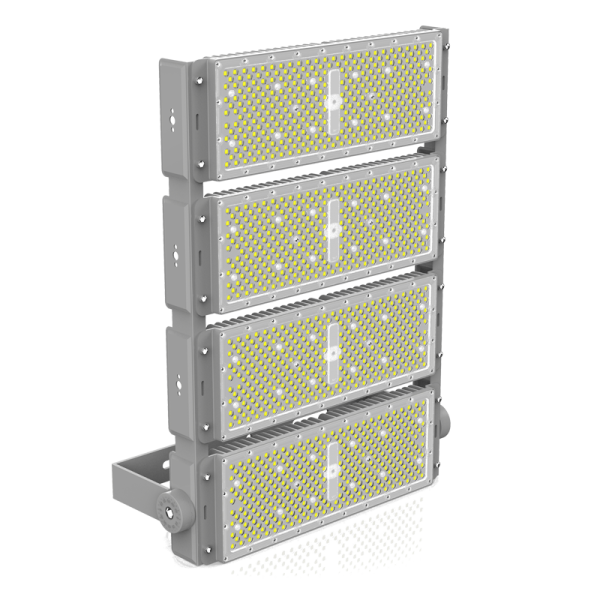

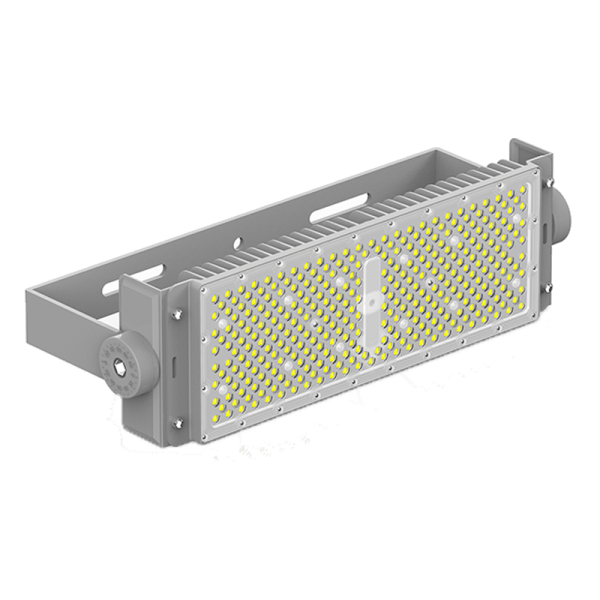

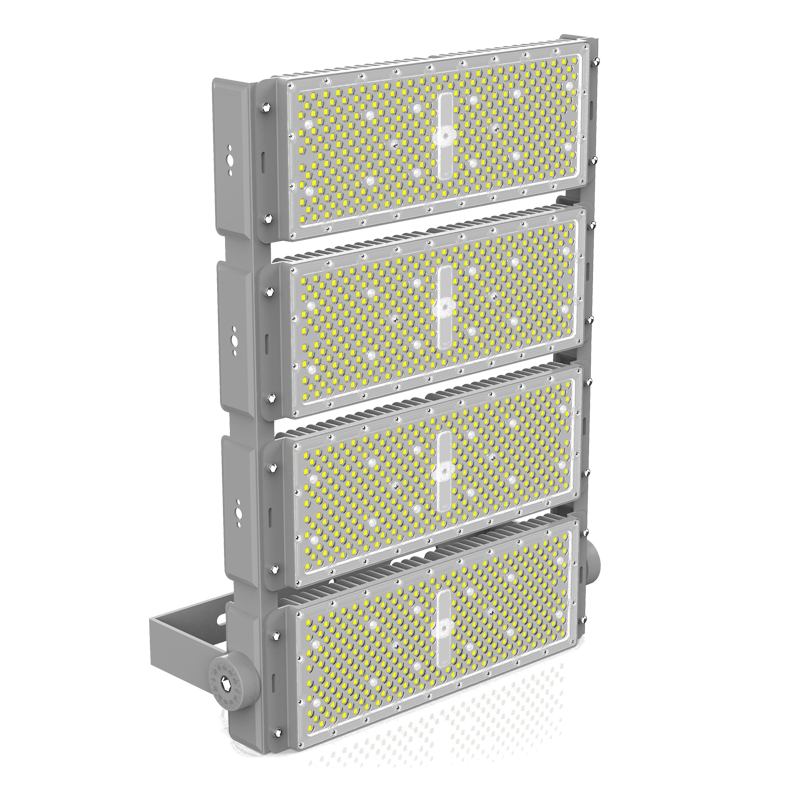

This ultra bright LED Modular Flood light series contain a full power range from 200W to 1600W. It’s 200W for each modular light. The modular light is designed in smart and clear looking, easy and convenient in assembling. The aluminum shell is designed in perfect heat dissipation. It boasts an IP65 waterproof rating and superior engineering, ensuring unparalleled durability and longevity outdoors. Its advanced design allows for reliable performance in all weather conditions, making it the optimal choice for engineering lighting projects.
| MODEL | EL-FM200 | EL-FM400 | EL-FM600 | EL-FM800 | EL-FM1000 | EL-FM1200 | EL-FM1600 |
|---|---|---|---|---|---|---|---|
| Dimension | W180*L505*H150 | W180*L505*H320 | W180*L505*H490 | W250*L985*H320 | W180*L505*H660 | W250*L985*H490 | W250*L985*H660 |
| LED Power | 200W | 400W | 600W | 800W | 1000W | 1200W | 1600W |
| Chip Type | SMD3030 | ||||||
| Lumen | 100-160LM/W | ||||||
| CCT | 3000K/4000K/6000K | ||||||
| CRI | Ra>70/80 | ||||||
| Beam Angle | 30° 60° 90° | ||||||
| Power Factor | PF>0.9 | ||||||
| Surge protection | SPD>6kV | ||||||
| Voltage | AC100-265V 50/60Hz | ||||||
| IP Grade | IP65 | ||||||
| Material | Aluminum+PC Lens |
